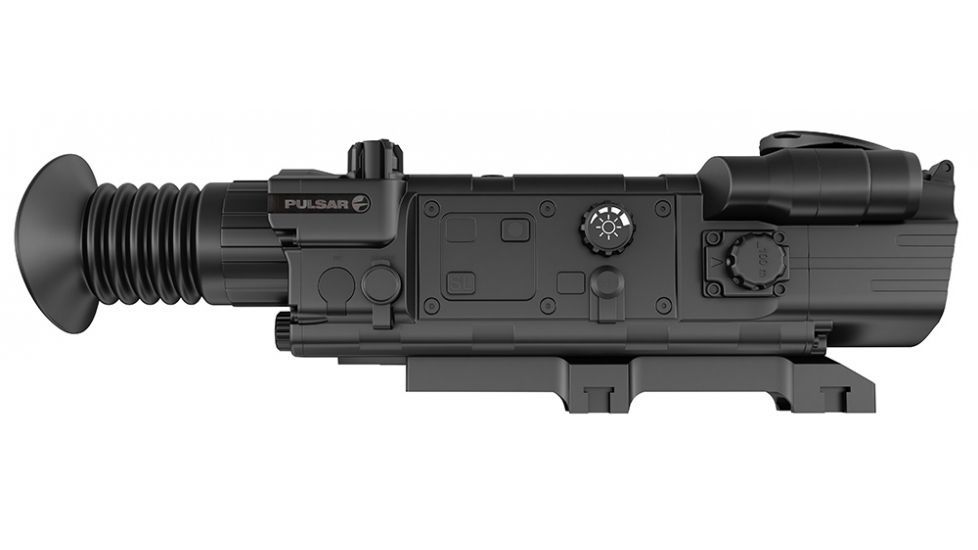

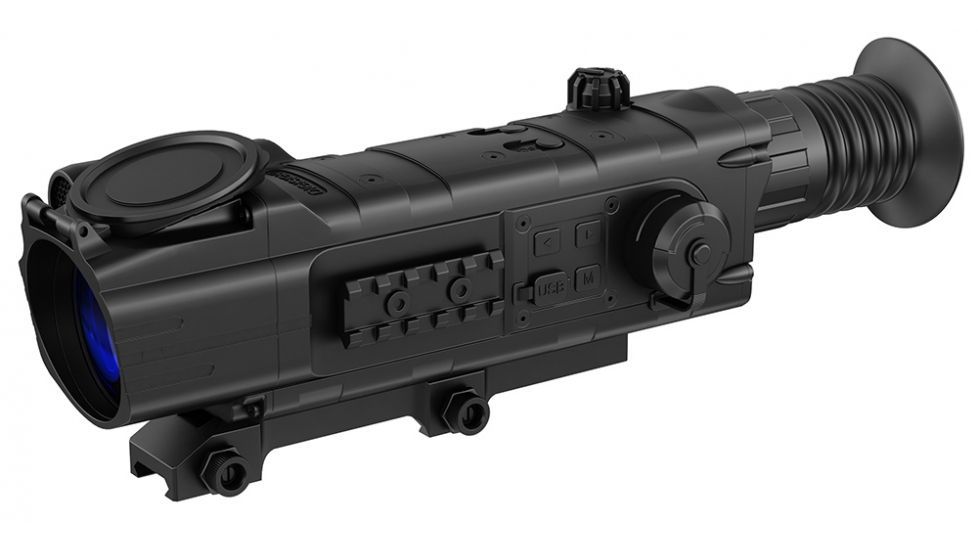

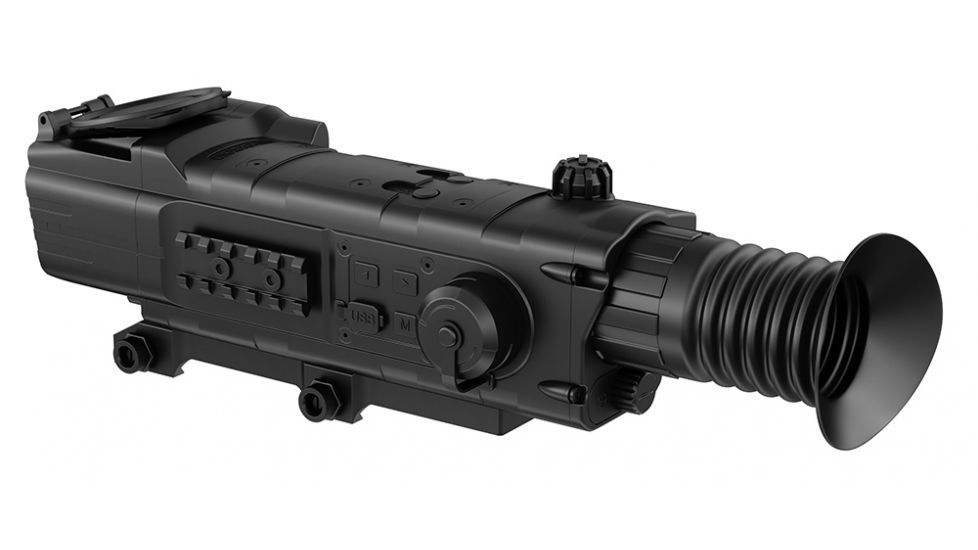

Specifications for Pulsar Digisight Digital NV Riflescope N750:
Generation:
Digital
Magnification:
4.5-6.75x
Objective Lens Diameter:
50mm
Field of view:
5 degrees angular
Eye relief:
67mm
Built-in IR flashlight:
Laser 780nm
Resolutions:
55 lines per mm
Max detection range:
600m
Diopter setting:
+-4 D
Close-up range:
5m
Operating voltage:
3.7V .... 6 4*AA
External power supply:
DC 9V
Power consumption:
15W / 3W
Water intrusion rating (IEC 60529):
IP44
Operating temperature:
-20C to +50 C
Dimensions:
340x95x94mm
Operating time with IR:
3.5 hours
Operating time without IR:
4 hours
Features of Pulsar N750 Digisight Night Vision Rifle Scope:
Superb image quality; high resolution
1-shot zeroing
Long eye relief
Built-in laser IR illuminator with three-step power adjustment
Resistant to bright light exposure
Built-in and external power supply
Lightweight and durable composite housing
Intuitive easy-to-use interface
Wireless remote control
Wide range of operating temperature
Internal focusing
Additional weaver rail for accessories
Video output
Built-in flip up objective lens cover
Windage/Elevantion Knob: Single knob (switchable between vertical and horizontal adjustments) allows better ergonomics and stable hold of the rifle during firing or sighting in the scope.
Weaver 7/8in Rail: Mil-STD 1913 rail on the side of the scope allows the use of multiple accessories including auxiliary IRs, batteries and other systems.
Quick Image Adjustment: Select the setting ideally for fitting the lighting conditions by choosing the High Contrast and/or Sum Light (Heightened light amplification) Modes.
Video Output: The Digisight N750 is equipped with a jack, enabling connection of external video recording sources.
Wireless Remote Control: The Digisight N750 includes a wireless remote control with scope and IR ON/OFF and zoom functions.
Brightness and Contrast Control: Users can adjust required screen brightness and contrast. A button next to the control wheel switches brightness and contrast modes.
Built-In Laser IR Illuniator: The internal eye-safe laser IR illuminator three-step power adjustment provides artificial illumination that improves image quality under insufficient levels of natural illumination.
Reticle Inversion: This feature switches the central point of aiming reticle between red-on-gray and green-on-gray.
Screen: Choice of four operating modes; blank screen "aiming reticle" mode, "clock" mode, and 'aiming reticle & clock" mode.
Lens Cap: Built-in flip cap. The lens cap is fixed on the scope's body to prevent loss.
Powering Up: The unit and the built-in IR illuminator is carried out successively by gradually turning the slector switch.
Package Contents:
Pulsar Digisight N750 Digital Night Vision Riflescope
