Armasight OPMOD Zeus 640 3-24x75 30 Hz Thermal ImagingArmasight OPMOD Predator 336 2-8x25 Thermal Weapon Sight, FLIR
Armasight OPMOD Zeus 336 3-12x50 (60 Hz) Thermal Imaging
Availability: In Stock
USD 2,097.00
Specifications for Armasight OPMOD 336 3-12x50 (60Hz) Thermal Imaging Monocular:
| Magnification (NTSC/PAL): | 2.8x / 3.4x |
| Objective Lens Type: | Germanium |
| Type of Focal Plane Array: | FLIR Tau 2 |
| Pixel Array Format: | 336x256 |
| Pixel Size: | 17 um |
| Color: | White Hot/ Black Hot/ Rainbow/ Various Color modes |
| Resolution: | 0.40mrad |
| Display Type: | AMOLED SVGA 060 |
| Controls: | Direct |
| Field of View - ang. (X / Y): | 7.8 / 5.9 |
| Objective Focal Length: | 50mm |
| Objective F-number: | 1:1.3 |
| Exit Pupil Diameter: | 10mm |
| Eye Relief: | 45mm |
| Focusing Range: | 5m to infinity |
| Power Supply: | 2x CR123A (3V) |
| Environmental Rating: | Water Resistant |
| Operating Temperature: | -40 to +50°C (-40 to +122°F) |
| Battery Life at 20°C (68°F): | 4 Hrs |
| Storage Temperature: | -50 to +70°C (-58 to +158°F) |
| Dimensions: | 255x70x70 /10x2.7x2.7 (mm/in) |
| Weight: | 0.7 / 1.5 (kg/lbs) |
| Digital E-Zoom: | 1x, 2x, and 4x |
Features of OPMOD Armasight Zeus 3-12x50 Thermal Imaging Scope, 60Hz:
- Accessible and intuitive controls use drop-down user interface
- Many reticle patterns, including no reticle option
- Multiple reticle colors
- Numerous color palette choices
- Compact, robust design is lightest in its class
- CNC machined aircraft-aluminum alloy construction
- Rapid start-up, long battery life
- Large, flexible eyecup protects your eyes from recoil and the eyepiece from the weather
- Manually adjustable eyepiece and objective lens
- Real-time display
- Adjustable display brightness
- Adjustable zoom
- Field environment corrections
- Windage/Elevation boresighting
- Displays information on current operating state (battery status, active function)
- Wireless remote control
- Analog video input and output (NTSC/PAL)
- Power input capability
- Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount
- Functions even in severe conditions
- Nitrogen filled to prevent internal fogging
- Water Resistant
- Limited 3-year warranty
- 10-year warranty on FLIR detector
Features of Armasight Recorder Digital Video Recorder (included with purchase):
- Records high-definition video directly from your Armasight thermal imaging unit
- MPEG-4/ASF video format
- MPEG-4 video compression
- 704x576 resolution, 5/15/30fps optional
- Manual / motion detection / scheduled / power-up recording functionality
- IR remote control
- SDHC memory support - up to 32 GB
- Quickly mounts to all Armasight Digital or Thermal device Picatinny rails
- Low power consumption (1W when standby, 2W when recording)
Package Contents:
- Armasight OPMOD 3-12x 50mm Thermal Monocular, 60 Hz
- AWReC (Advanced Wireless Remote Control) #94
- Instruction Manual with Warranty Card
- Picatinny adapter for AWReC (Advanced Wireless Remote Control)

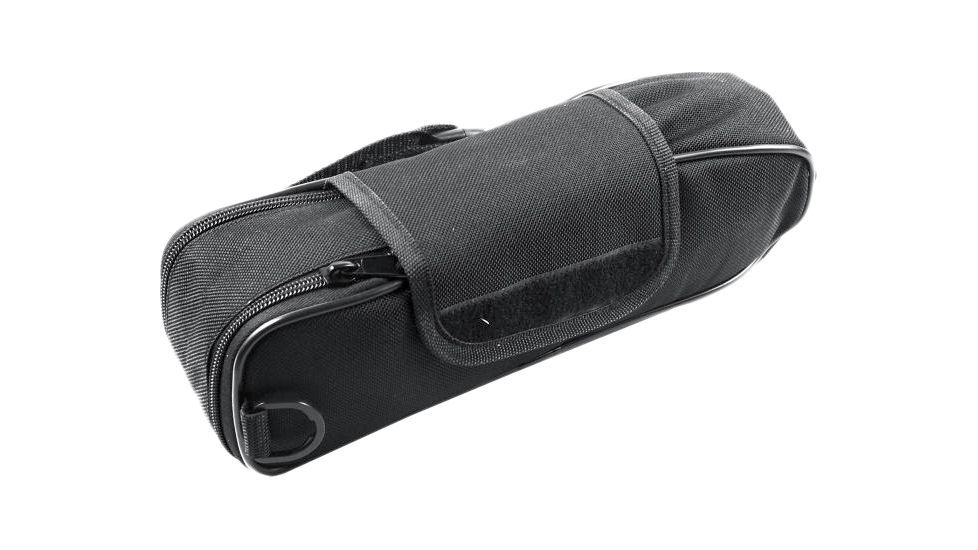

- Soft carrying Case
- Hard carrying Case
- Two Lithium Battery CR123A
- Video Cable
- Objective Lens Cap
- Eyecup
- Mount
- Lens Tissue
- New! FREE Armasight Recorder DT DVR (Digital Video Recorder) with Purchase - $289 Value
